Telescopic conveyor extended through a fire door

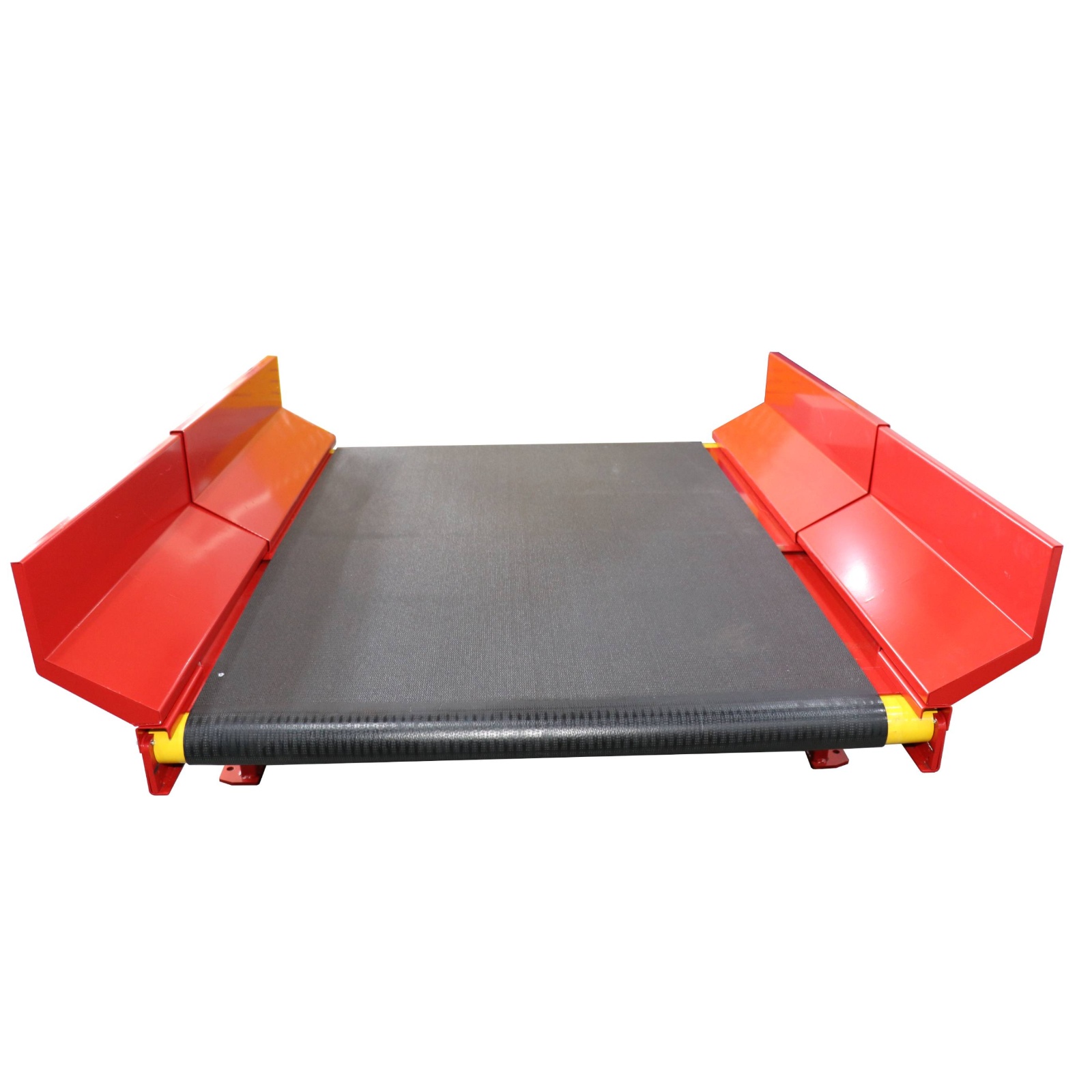

Telescopic Conveyor for Fire Door Bridge

Telescopic Conveyor for Fire Door Bridges: Seamless Workflow, Uncompromised Safety.

Our Telescopic Fire Door Bridge Conveyor is an innovative material handling solution designed to operate through open fire doors. It enables continuous product flow in warehouses and distribution centers while maintaining the critical integrity of fire compartments. This system eliminates workflow interruptions, boosts efficiency, and ensures full compliance with fire safety regulations.

معلمات المنتج

رقم الصنف :
SQ-2-2/1-FD
الطلب (الحد الأدنى لكمية الطلب) :
1
قسط :
50% deposit，50% balance against BOL
أصل المنتج :
China
لون :
Customized
ميناء الشحن :
Shanghai Port
مهلة :
30 Days
وزن :
1000 KG

مقدمة المنتج

Telescopic Conveyor for Fire Door Bridge
Model	Fixed Length（mm）	Extendable Length（mm）	Height（mm）	Belt Width（mm）
SQ-2-1.3/0.6	1300	600	350	800/1000/1200
SQ-2-2/1	2000	1000	350	800/1000/1200
SQ-2-3/2	3000	2000	400	800/1000/1200
SQ-2-4/3	4000	3000	450	800/1000/1200

The Harmony of Efficiency and Safety

This is not just a conveyor; it's an integrated part of your building's life safety system. It allows your workflow to pass directly through fire-rated barriers without compromising the integrity of those barriers when needed most.

Automatic Fire Alarm Interlock:

The conveyor is directly interfaced with your building's fire alarm system. Upon receiving a signal from the alarm panel, the conveyor initiates an immediate and automatic retraction sequence, fully retracting its boom before the fire shutter begins to descend.

Fail-Safe Operation:

The system is designed with safety as the top priority. In the event of a power failure during an alarm, the retraction mechanism is powered by a backup power system to ensure it always retracts, guaranteeing a clear path for the fire shutter.

Rapid Retraction Cycle:

Engineered for speed, the conveyor completes its full retraction within seconds, well within the safe time window before the fire shutter is programmed to close.

Manual Override & Pre-Retraction Warning:

Includes a manual control switch for testing and operational purposes. The system can also be equipped with an audible and visual pre-retraction alarm (e.g., a beeper and flashing light) to warn personnel before automatic retraction begins.

Robust Construction:

Built from heavy-duty steel to withstand demanding industrial environments. The design ensures reliability for thousands of daily operational cycles and immediate response in an emergency.
