Telescopic Belt Conveyor – Customizable & space-saving solutions for efficient loading/unloading. MOQ:1, wholesale discounts available. Global agents wanted!
رقم الصنف :
SQ-4-6/12.6-YBالطلب (الحد الأدنى لكمية الطلب) :
1قسط :
50% deposit，50% balance against BOLأصل المنتج :
Chinaلون :
Customizedميناء الشحن :
Shanghaiمهلة :
40وزن :

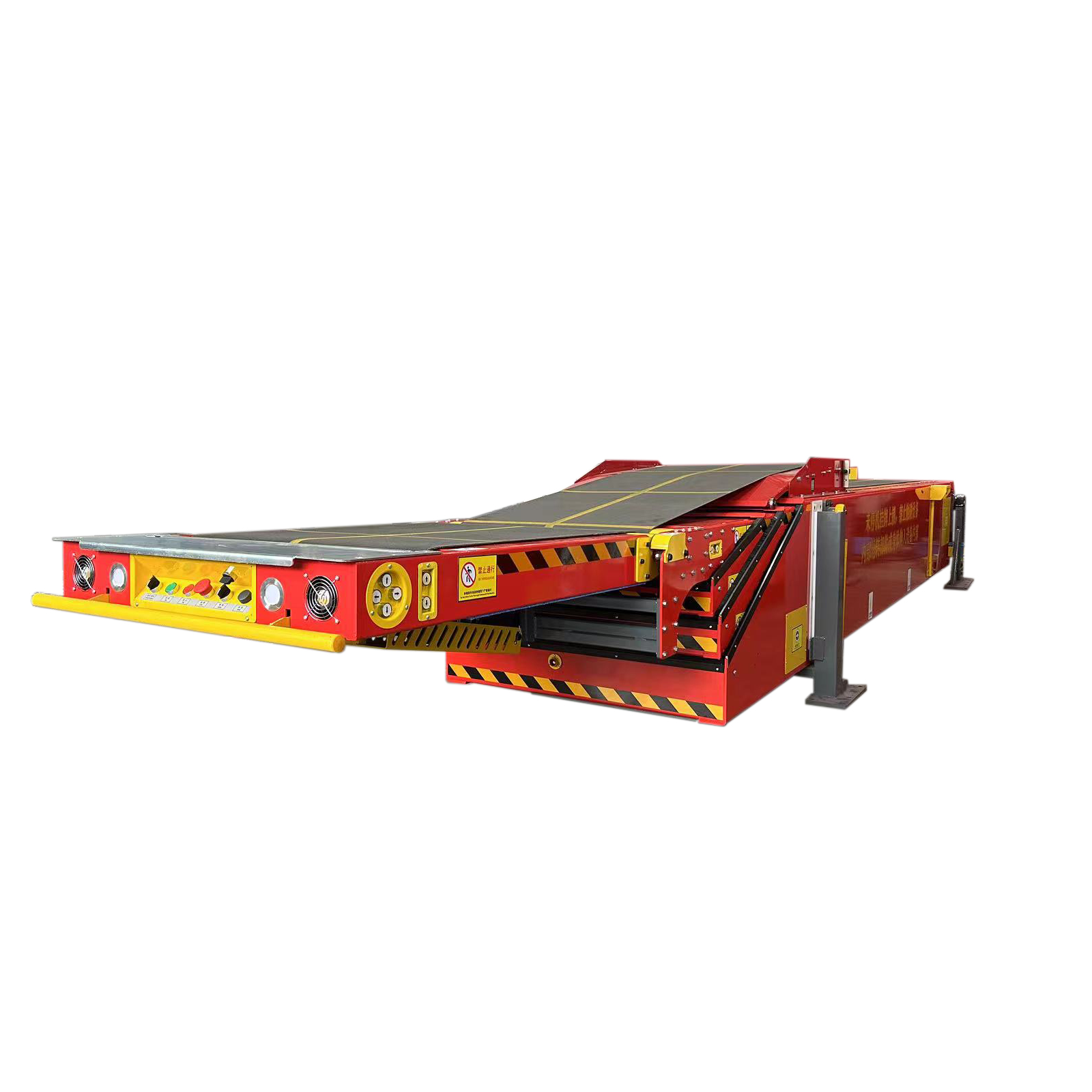

3500SQ Telescopic Belt Conveyor with Snoot Arm – Maximize Efficiency, Minimize Cost
Shuangqi (SQ) specializes in highly customizable telescopic belt conveyors with industry-leading extension length (longest reach in fixed-frame models) and the widest range of standard models.
Why Choose SQ Telescopic Conveyor?
• Cost Advantage: Competitive pricing without compromising durability—direct factory savings.
• Unmatched Extension: Our conveyors extend further than competitors’ same-size models, optimizing workspace.
• Widest Product Range: From compact 5m to heavy-duty 30m+ extensions, covering all logistics needs.
• Professional OEM/ODM: Tailor length, speed, load capacity (up to 80kg/m²), and power options (electric/hydraulic).
• Global Support: MOQ starts at 1 unit with wholesale discounts. Agents & distributors welcome worldwide!
| Type | Booms | Fixed Length(mm) | Extendable Length(mm) | Total(mm) | Belt Width(mm) | Snoot length（mm） |
| SQ-2-4/3 | 2 | 4000 | 3000 | 7000 | 600/800/1000 | 1500 |
| SQ-3-5/7 | 3 | 5000 | 7000 | 12000 | 600/800/1000 | 1500 |
| SQ-3-6/8.6 | 3 | 6000 | 8600 | 14600 | 600/800/1000 | 1500 |
| SQ-4-5/10 | 4 | 5000 | 10000 | 15000 | 600/800/1000 | 1500 |
| SQ-4-6/12.6 | 4 | 6000 | 12600 | 18600 | 600/800/1000 | 1500 |
| SQ-4-7/14.6 | 4 | 7000 | 14600 | 21600 | 600/800/1000 | 1500 |
| SQ-4-7.5/16 | 4 | 7500 | 16000 | 23500 | 600/800/1000 | 1500 |
| SQ-4-8/17 | 4 | 8000 | 17000 | 25000 | 600/800/1000 | 1500 |
| SQ-5-6/16 | 5 | 6000 | 16000 | 22000 | 600/800/1000 | 1500 |
| SQ-5-7/19 | 5 | 7000 | 19000 | 26000 | 600/800/1000 | 1500 |
| SQ-5-7.5/21 | 5 | 7500 | 21000 | 28500 | 600/800/1000 | 1500 |
| SQ-6-6/20.5 | 6 | 6000 | 20500 | 26500 | 600/800/1000 | 1500 |
| SQ-6-7.5/24 | 6 | 7500 | 24000 | 31500 | 600/800/1000 | 1500 |
Maximize Space: Position the conveyor further back to create safe, clear aisles for manual operations and pedestrian traffic.
Maximize Flexibility: The upright stow position reclaims all floor space when the conveyor is not active.
Superior Space Efficiency

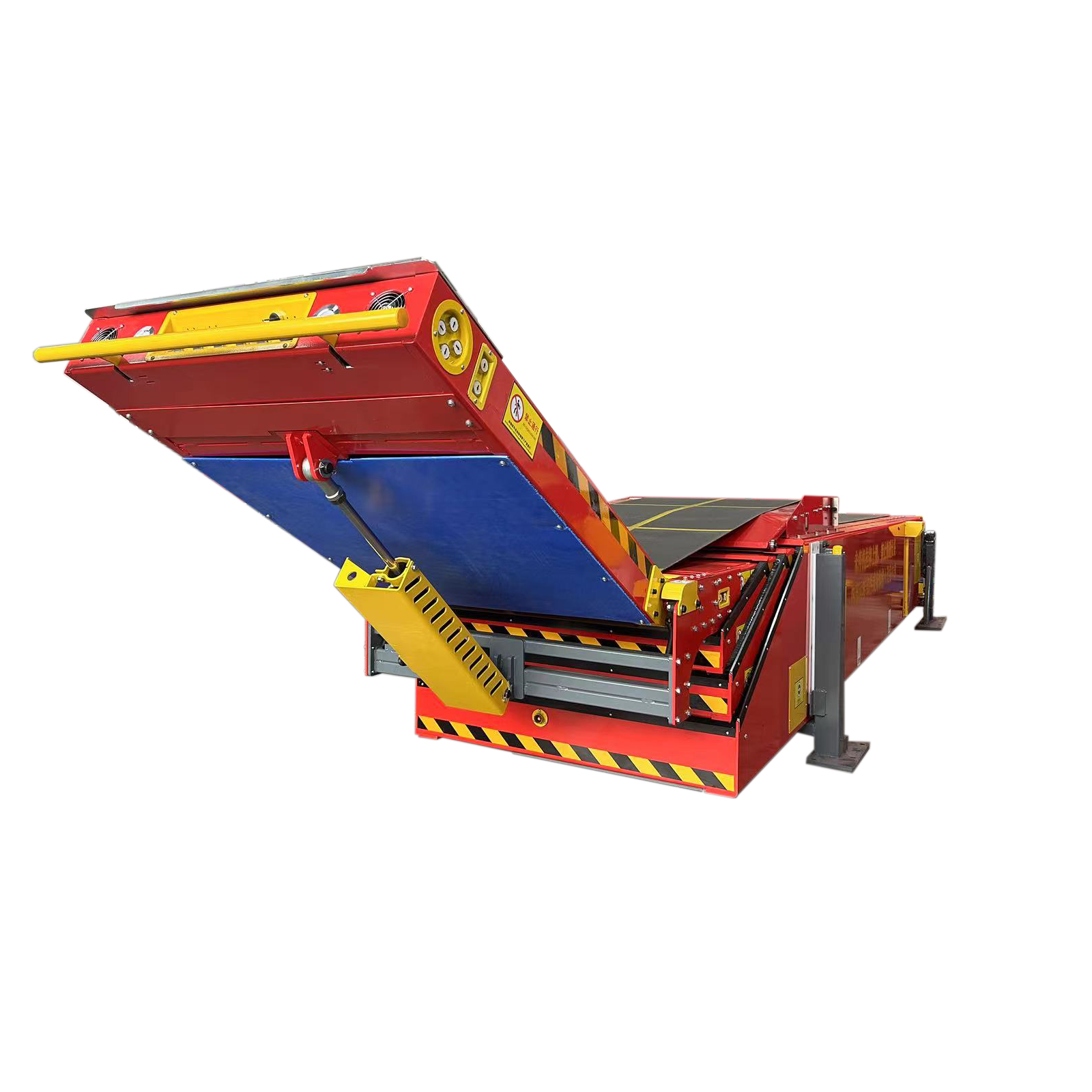

When not active, the droop snoot can be raised and locked into a vertical stow position. This completely clears the floor space directly in front of the conveyor, maximizing the available area for other equipment or temporary storage. This reclaims valuable real estate on a busy dock until the next truck arrives.
Increased Operational Efficiency & Ergonomics
By delivering goods directly to the desired point inside the trailer, the droop snoot dramatically reduces the need for operatives to walk deep into trucks. This minimizes physical strain, lowers the risk of injury, and accelerates the entire loading/unloading cycle, reducing truck turn-around time and boosting overall warehouse throughput.
